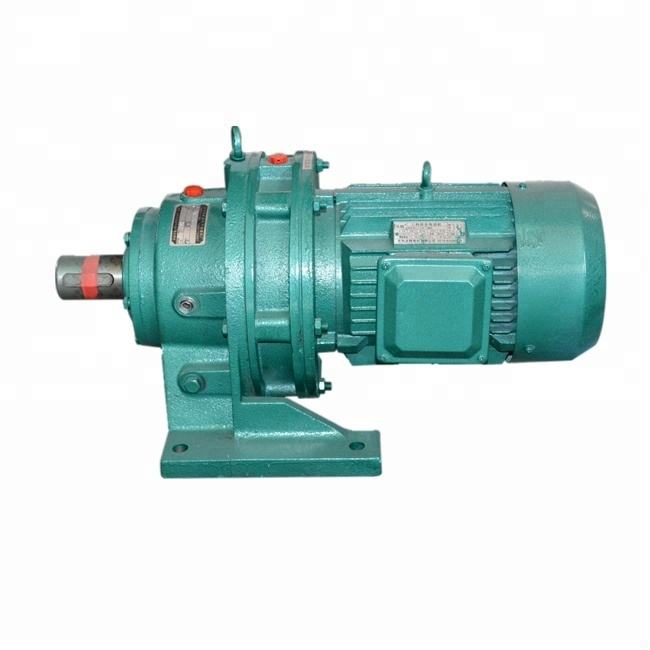

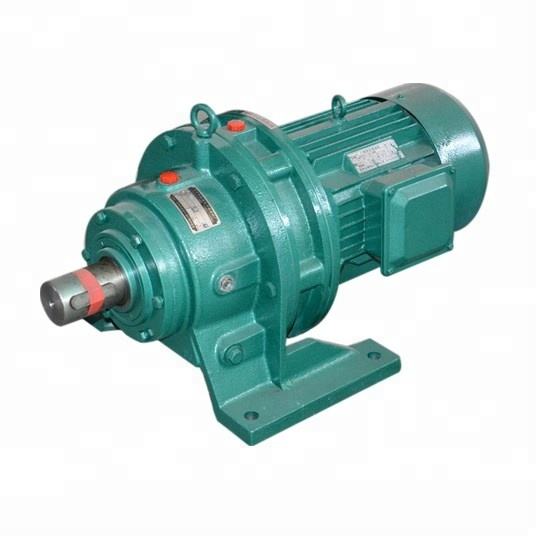

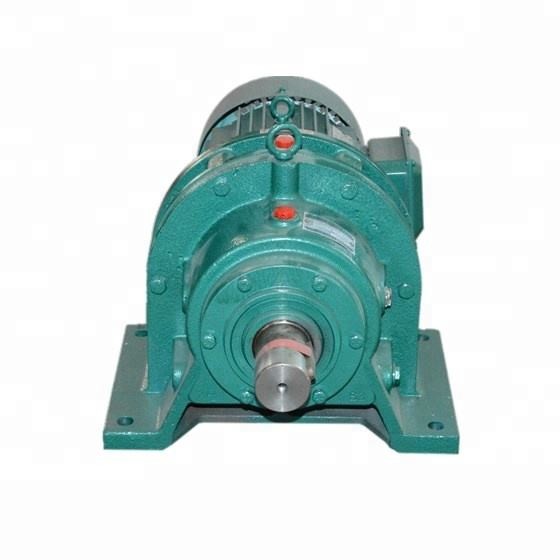

280rpm Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7

Name: 280rpm Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7
Brand: FANBAO
Price: 1 USD

China 280rpm Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7 wholesale

Brand Name : FANBAO

Certification : CE

Place of Origin : china

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 150sets per month

Delivery Time : 5-8 work days

Packaging Details : standard export wooden case

Gearing Arrangement : Planetary motor

Output Torque : 50~2300Nm

Input Speed : 1400Rpm

Output Speed : 14-280rpm

Weight (KG) : 55kg

Ratio : 9-2800

Material : Steel or cast iron

Port : Shanghai, Ningbo

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company

Input form : IEC flange, direct with motor, shaft input

Contact Now

Cycloidal Pinwheel Bwd1/Bwd2/Bwd3/Bwd4/Bwd5/Bwd6/Bwd7 Gear Reducer

Description :

The cycloidal pinwheel reducer, also known as a planetary cycloid reducer, is an innovative transmission device that combines the principles of planetary transmission and cycloid pin tooth meshing. This advanced transmission system comprises three key components: the input section, the deceleration segment, and the output division.

By leveraging the unique principle of cycloid pin-tooth meshing and planetary transmission, the planetary cycloidal pinwheel reducer finds extensive applications across a diverse range of industries including petroleum, environmental protection, chemical, cement, transportation, textile, pharmaceuticals, food processing, printing, hoisting, mining, metallurgy, construction, and power generation. Whether serving as a driving force or a deceleration mechanism, this versatile device can be configured in horizontal, vertical, biaxial, and direct-connected setups.

Optimized for performance and efficiency, the cycloidal pinwheel reducer stands as a reliable solution for various industrial applications, offering unparalleled precision, durability, and adaptability. Its design and functionality make it an indispensable component in modern machinery and equipment across different sectors.

Feature :

Our factory-produced cycloidal pinwheel reducer stands out for its exceptional quality, dependable performance, diverse specifications, and competitive pricing. Here are the key features that set our product apart:

High Speed Ratio and Efficiency
- Achieves a remarkable reduction ratio of 1:87 in a single stage with efficiency exceeding 90%.
- Multistage transmission options offer even greater deceleration ratios.
Compact Structure, Small Footprint
- Utilizing the principle of planetary transmission, this reducer boasts a compact design with the input and output shafts aligned on the same axis, resulting in a small overall volume.
Low Operating Noise
- The cycloidal needle tooth engagement mechanism ensures minimal running noise due to the large overlap coefficient and stable operation.
Durable with Long Service Life
- Constructed with high-strength bearing steel and subjected to quenching treatment, ensuring longevity.
- The gear tooth profile enables load sharing among multiple teeth, reducing the risk of tooth breakage.
- Components made of high carbon chromium bearing grade steel hardened to Rockwell Hardness of HRC 61-63 for optimal durability.
User-Friendly Design
- Features a rational design for easy maintenance, convenient disassembly and installation.
- Minimal parts and straightforward lubrication requirements enhance user trust and satisfaction.

Specification :

Parameters Table

BW,BWD,XW,XWD type(Two stage) shape and installation dimensions

280rpm Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7

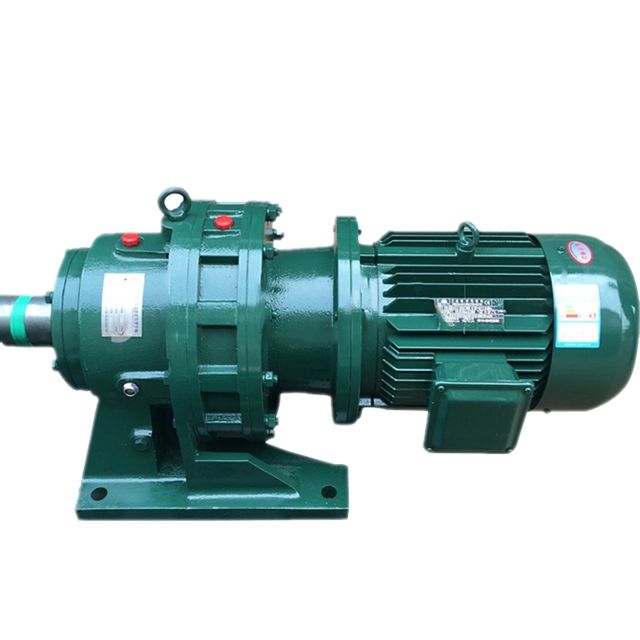

Appearance of a two-stage horizontal cycloid pinwheel planetary reducer

NO.

Dimensions

Installation size

Shaft end size

weightht

BWE

BWED (≈)

BWE

BWED

BWE, BWED120-195No.

B120	200	320	368	319	306	240	140	144	20	150	280		M8	60	4	13	14	48. 5	45	68	5	17	15	22	50	BWED weight + motor weight
130	250	390	417	368	356	300	160	159	25	200	340		M12	75	4	17	16	59	55	80	5	17	15	22	82
131	250	390	443	373	356	300	160	159	25	200	340	65	M12	75	4	17	16	59	55	80	6	20. 5	18	35	90
141	380	400	505	435	425	340	200	153	25	320	340	65	M12	80	4	22	20	74. 5	70	100	6	20. 5	18	35	140
142	380	400	534	459	425	340	200	153	25	320	340	100	M12	80	4	22	20	74. 5	70	100	6	24. 5	22	40	155
152	440	470	635	535	504	400	240	155	32	380	420		M16	80	4	22	25	95	90	116	6	24. 5	22	40	240
153	440	470	643	547	504	400	240	155	32	380	420		M16	80	4	22	25	95	90	116	8	33	30	55	260
163	520	560	741	645	605	500	280	199	35	440	500		M20	90	4	26	28	106	100	139	8	33	30	55	460
174	600	690	863	754	706	616	325	230	40	500	630		M24	105	6	26	28	116	110	150	10	38	35	62	680
185	810	880	1113	983	880	760	420	324	50	660	800		M30	160	6	32	32	137	130	202	14	48. 5	45	70	1320
195	1040	1160	1502	1350	1160	1000	540	485	60	840	1050		M42	200	6	45	45	190	180	330	14	48. 5	45	70

XWE,XWED42—128No.

X42	195	330	372	319	316	240	150	169	22	145	290	M8	65	4	16	14	48. 5	45	72	5	17	15	22	50	XBWED weight + motor weight
53	260	420	479	409	356	300	160	206	25	150	370	M12	75	4	16	16	59	55	91	6	20. 5	18	35	110
63	335	430	524	454	425	340	200	125	30	275	380	M12	75	4	22	18	69	65	89	6	20. 5	18	35	150
64	335	430	552	478	425	340	200	125	30	275	380	M12	75	4	22	18	69	65	89	6	24. 5	22	40	160
74	380	470	582	508	484	400	220	145	30	320	420	M16	95	4	22	22	85	80	109	6	24. 5	22	40	230
84	440	530	648	574	514	400	250	155	35	380	480	M16	120	4	22	25	95	90	120	6	24.5	22	40	260
85	440	530	682	586	514	400	250	155	35	380	480	M16	120	4	22	25	95	90	120	8	33	30	55	290
95	560	620	784	688	614	500	290	186	40	480	560	M20	120	4	26	28	106	100	141	8	33	30	55	470
106	600	690	863	754	706	616	325	230	40	500	630	M24	105	6	26	28	116	110	150	10	38	35	62	680
117	810	880	1108	983	880	760	420	324	50	660	800	M30	160	6	32	32	137	130	202	12	43	40	65	1320
128	1040	1160	1502	1350	1160	1000	540	485	60	840	1050	M42	200	6	45	45	190	180	330	14	48.5	45	70

280rpm Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7

Each reducer needs to be airtight tested before spraying to minimize the incidence of oilleakage and air leakage.

The long life of the packaged Fanbao reducer is good, thequality is more intimate, and the customer is more assured.

280rpm Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7

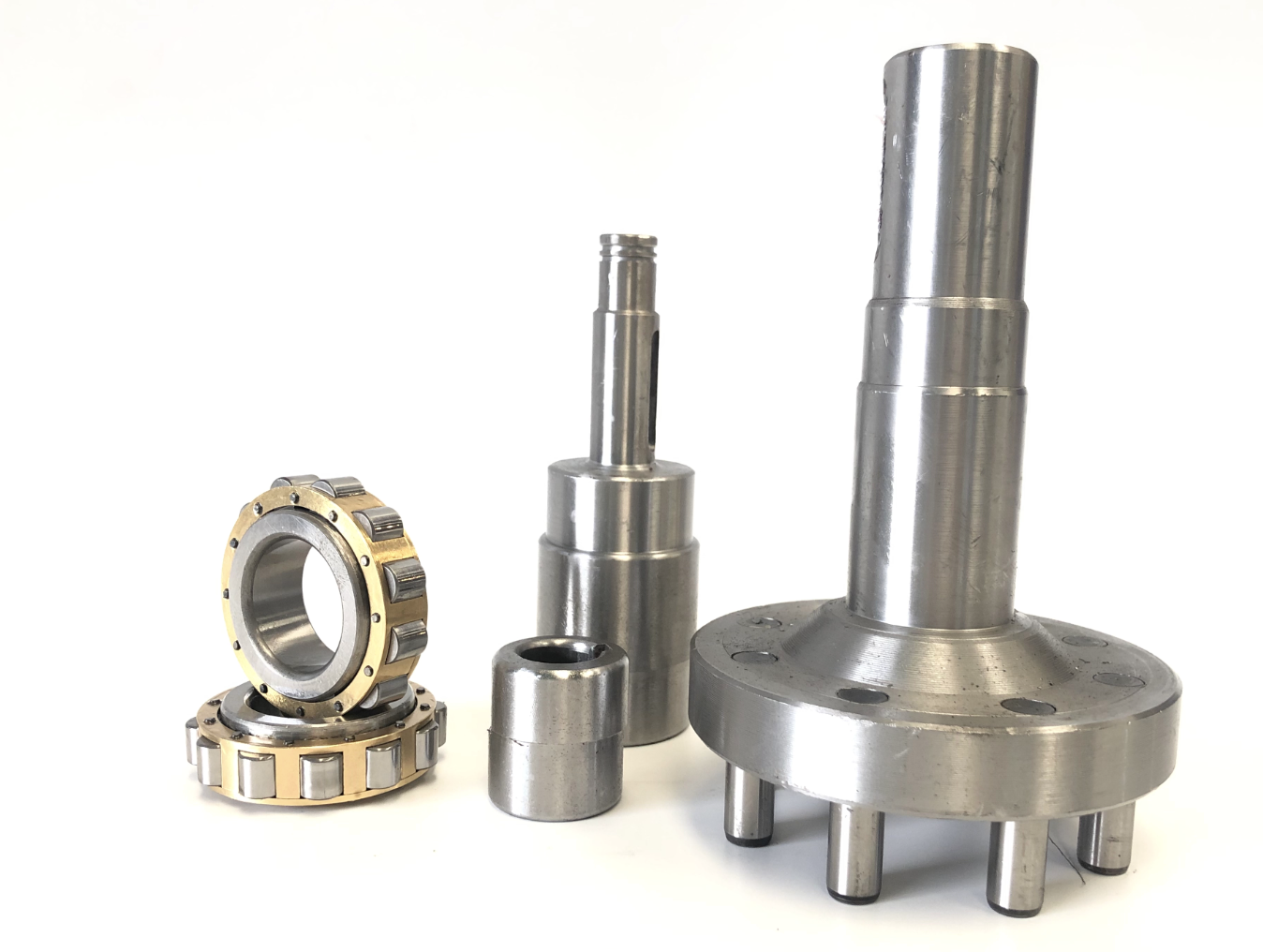

Boutique output shaft

280rpm Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7

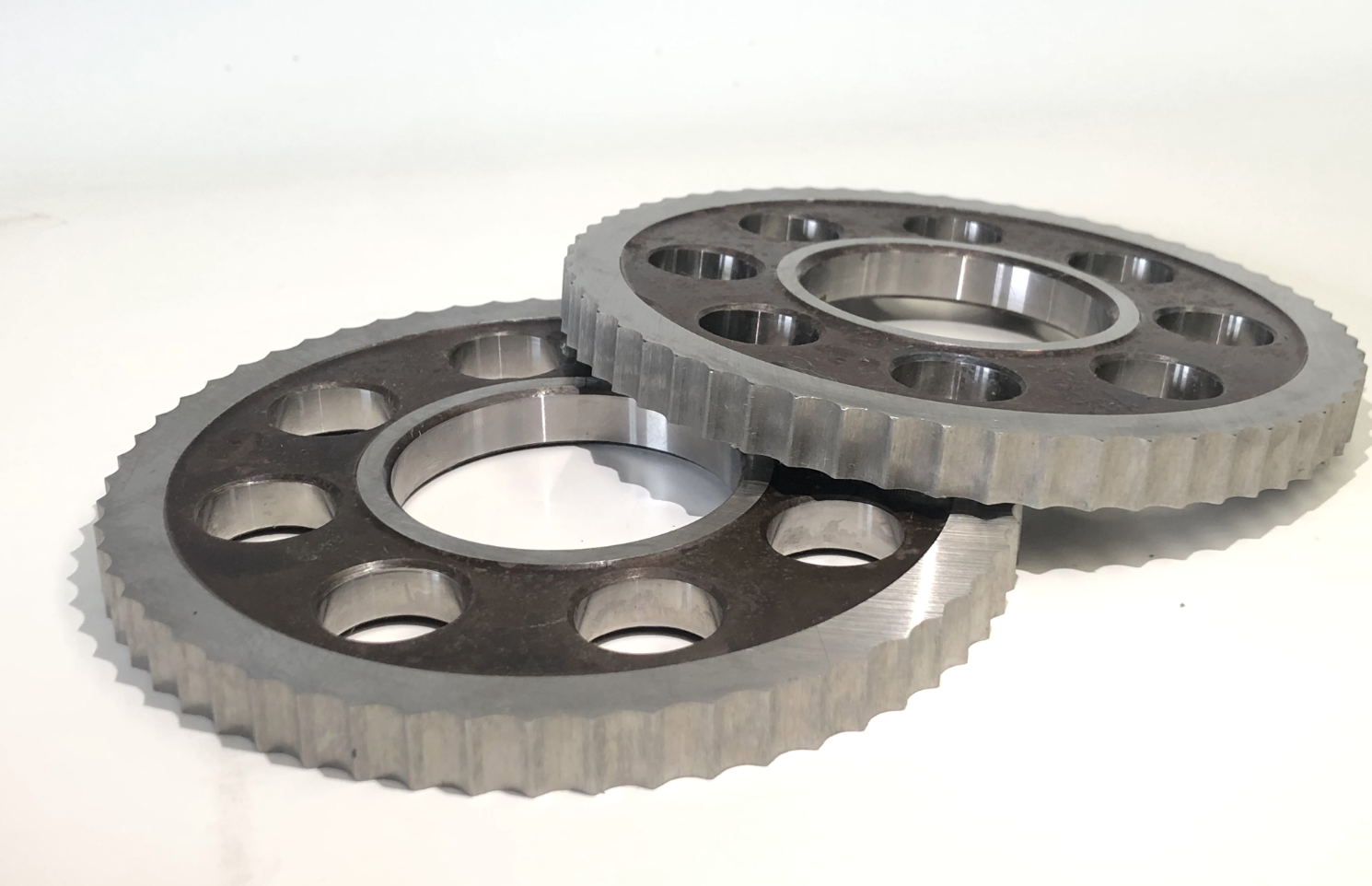

High quality cycloldal wheel High-quality bearing steel with excellent fire treatment, high strength, longrolling contact friction at contact parts

280rpm Planetary Cycloidal Gear Reducer Pinwheel Bwd6 Bwd7
