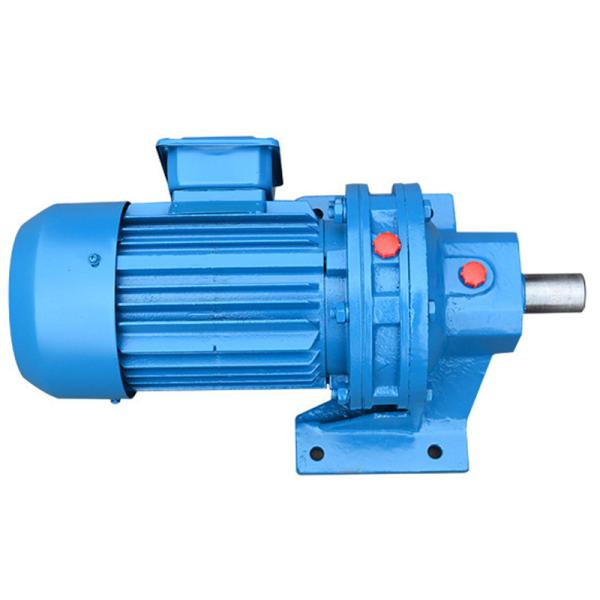

750rpm-1500rpm Cycloidal Reducer Planetary Reduction Gearbox

Name: 750rpm1500rpm Cycloidal Reducer Planetary Reduction Gearbox
Brand: FANBAO
Price: 1 USD

China 750rpm-1500rpm Cycloidal Reducer Planetary Reduction Gearbox wholesale

Brand Name : FANBAO

Place of Origin : chinaPort

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 150sets per month

Delivery Time : 5-8 work days

Packaging Details : standard export wooden case

Gearing Arrangement : Planetary motor

Output Torque : 108100N.m

Input Speed : 750-1500rpm

Output Speed : 0.64-350rmp

Weight (KG) : 10kg

Material : Steel or cast iron

Port : Shanghai, Ningbo

Mounting : Foot mounted, flange mounted

Contact Now

Cycloid Gearboxes Cycloid Gear Reducer Series Cycloid Gear Reducer

Description :

Cycloidal reducer is a novel transmission machinery with less tooth difference planetary transmission principle and cycloidal needle tooth meshing according to JB/T2982. It is widely used in textile printing and dyeing, light industry food, metallurgical miners, petrochemical, hoisting and transportation and construction machinery, etc.

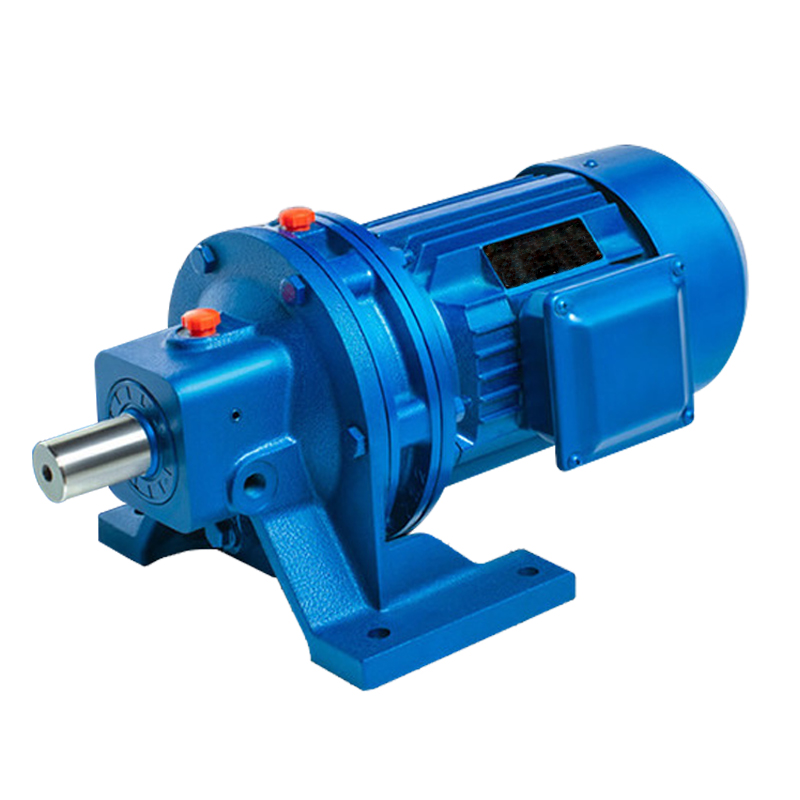

Cycloid Reducer

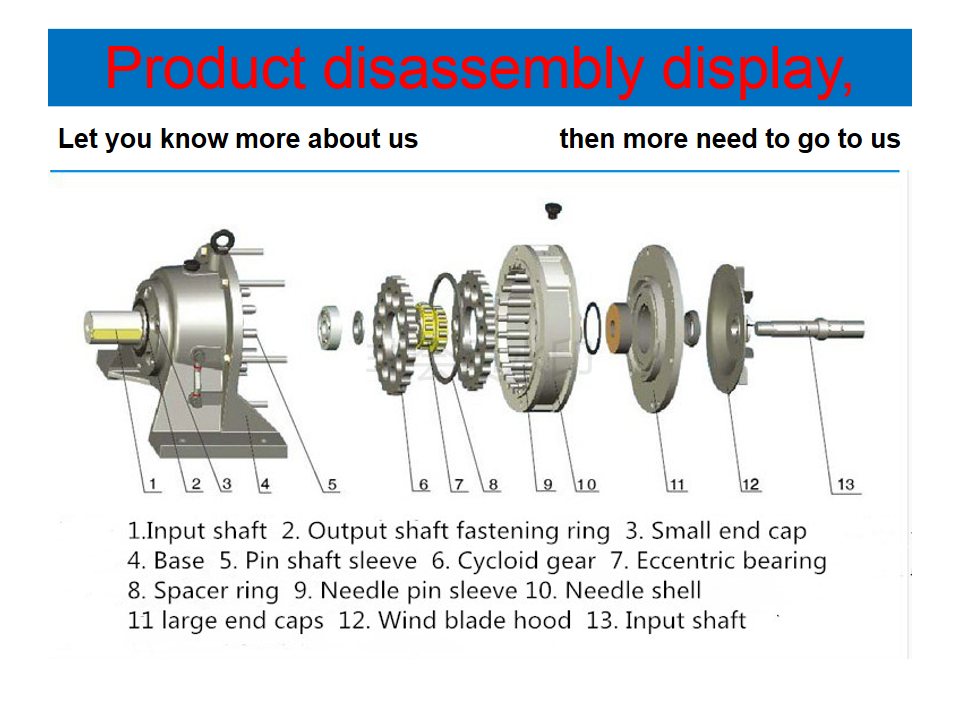

The cycloidal pinwheel reducer is an innovative transmission mechanism that leverages the concept of planetary transmission combined with the interaction of cycloid pin teeth. This transmission system comprises three primary components: the input section, the reduction section, and the output section.

Known as a planetary cycloid reducer, this device incorporates the principles of cycloid pin-tooth engagement and planetary transmission. Its versatility allows for widespread applications across industries such as petroleum, environmental protection, chemical engineering, cement production, transportation, textiles, pharmaceuticals, food processing, printing, lifting operations, mining, metallurgy, construction, power generation, and more.

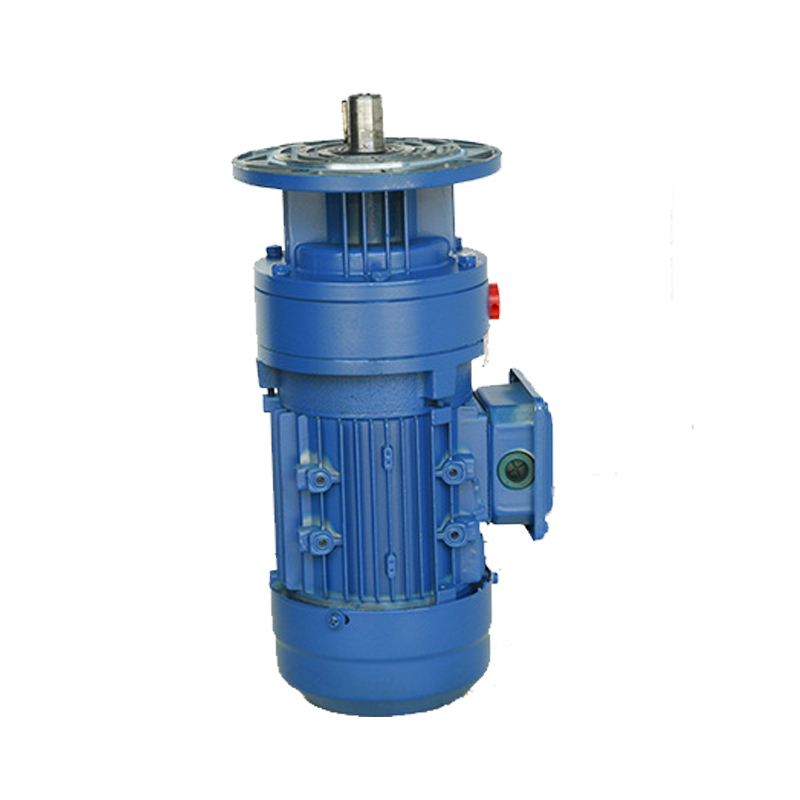

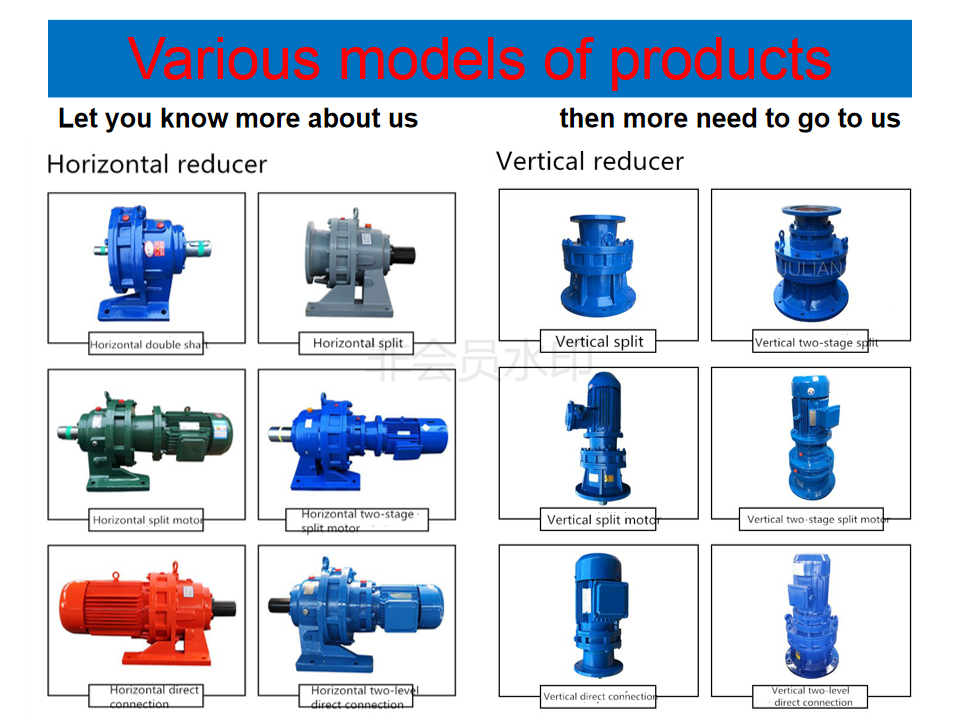

This reducer can function as a driving or deceleration unit and can be implemented in various configurations including horizontal, vertical, dual-axis, and direct-coupled setups to suit different operational requirements.

750rpm-1500rpm Cycloidal Reducer Planetary Reduction Gearbox

model	Power (KW )	shaft diameter (mm)	Center height (mm)	Mounting pitch (mm)	key size (mm)	shaft length (mm)	Shaft to hole (mm)
BWD-B0- 0.75	0.75	30	100	90*150	8	35	93
BWD-B1-1.1	1.1	35	120	110*240	10	56	125
BWD-B1-1.5	1.5	35	120	110*240	10 10	56	125
BWD-B2-2.2	2.2	45	140	150*280	14	68	144
BWD-B2-3.0	3.0	45	140	150*280	14	68	144
BWD-B3-5.5	5.5	55	160	200*340	16	80	149
BWD-B3-7.5	7.5	55	160	200*340	16	80	149

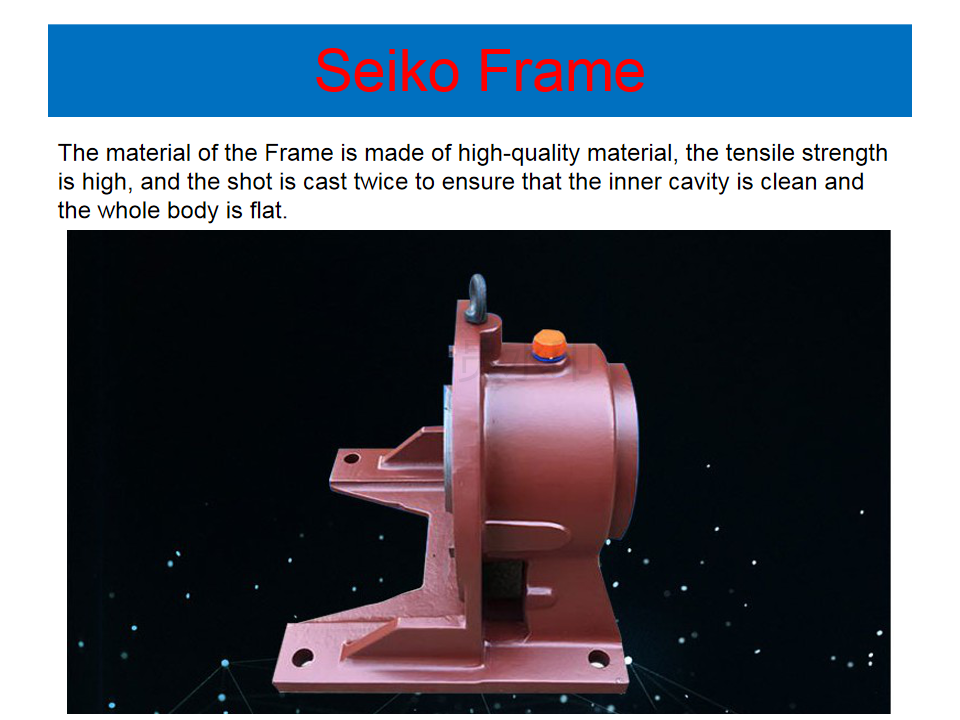

The material of the Frame is made of high-quality material, the tensile strengthis high,

and the shot is cast twice to ensure that the inner cavity is clean andthe whole body is flat.
