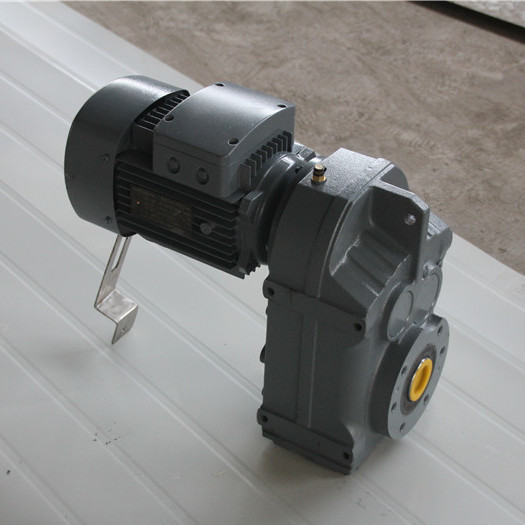

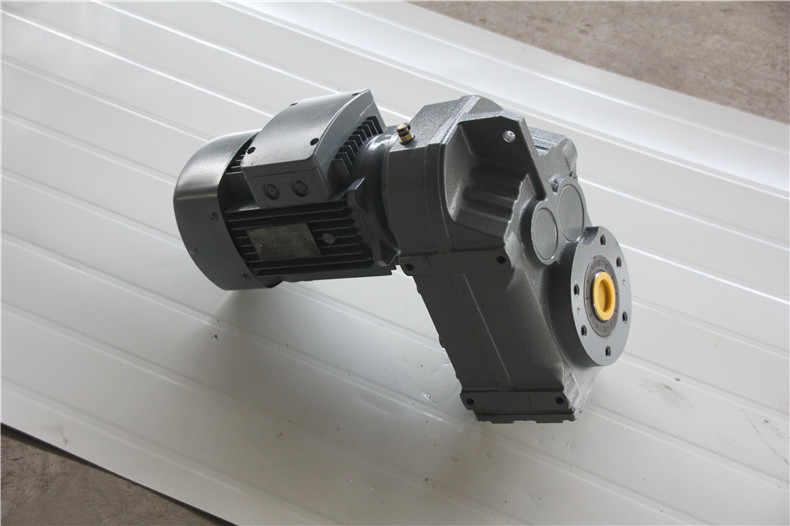

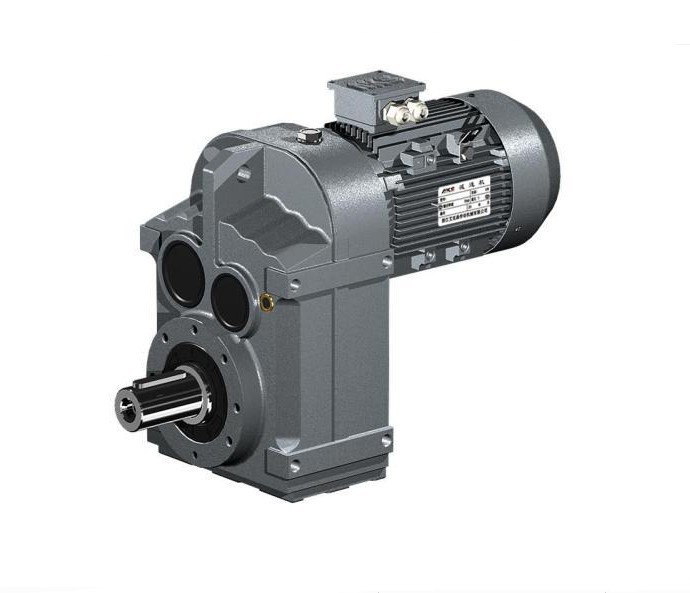

Parallel Shaft F Series Gearbox Helical Geared Motor Reducer For Agitator

Name: Parallel Shaft F Series Gearbox Helical Geared Motor Reducer For Agitator
Brand: FANBAO
Price: 1 USD

China Parallel Shaft F Series Gearbox Helical Geared Motor Reducer For Agitator wholesale

Brand Name : FANBAO

Model Number : F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157

Certification : CE

Place of Origin : china

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100sets per month

Delivery Time : 8-15work days

Packaging Details : standard export wooden case

Output Torque : 10.6-952000NM

Input Speed : 750-1500rpm

Output Speed : 14-280rpm

Warranty : 1 year

Color : customer Requirement

Ratio : 3.77~276.77

Efficiency : 94%~98%(depends on the transmission stage)

Mounting Position : Flange, hollow shaft, solid shaft

Contact Now

Parallel Shaft Helical Geared Motor F Series Gear Reducer For Agitator

Description :

F series reducer is a kind of gear is used to reduce the motor speed and improve the output torque of the principle of speed reducer. It uses the gear and gear meshing, with advanced design and novel structure of retarding mechanism.
It has been widely used in harbor and shipping,electric power,coal mining,cement and construction,paper and light industry.

Feature

• High efficiency and save power.
• High modular design, flexible mounting mode.
• Integrated casting housing,compact dimension, stable transmitting and low noise level.
• Perfect oil leakage preventing makes the good sealings and can be used in wide range of industry.
• Advanced gear grinding and modified profile, high loading support and more safe operation.

Apart of type specification :

SIZE	37	47	57	67	77	87	97	107	127	157
	DF DFA DFF DKAZ DFAF DFAZ
INPUT POWER RATING(KW)	0.18-0.30	0.18-3.0	0.18-5.5	0.18-5.5	0.37-11	0.75-22	1.1-30	2.2-45	7.5-90	11-260

RATIO	3.81-128.51	5.06-189.39	5.18-199.70	4.21-228.99	4.20-271.92	4.12-270.64	4.68-270.64	6.20-255.25	4.63-172.33	12.07-270.18

MAX TORQUE(N.m)	200	400	600	820	1500	3000	4300	7840	12000	18000

WEIGHT(KG)	13	18	34	55	90	150	260	402	700	950

Mounting position and Position of the motor terminal box :

Parallel Shaft F Series Gearbox Helical Geared Motor Reducer For Agitator

Parallel Shaft F Series Gearbox Helical Geared Motor Reducer For Agitator

Application :

Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.

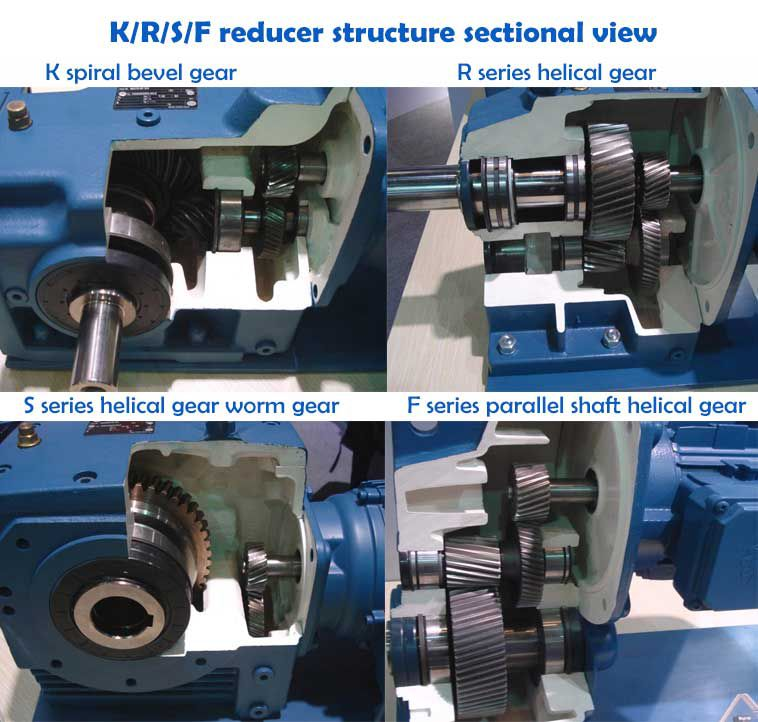

F series process :

Packing and shipping way :

Why choose us ?

1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
